Top Speed
20MPH
MOTOR POWER
750W(Peak)
RANGE
Up to 75 Miles
Weight
50 lbs

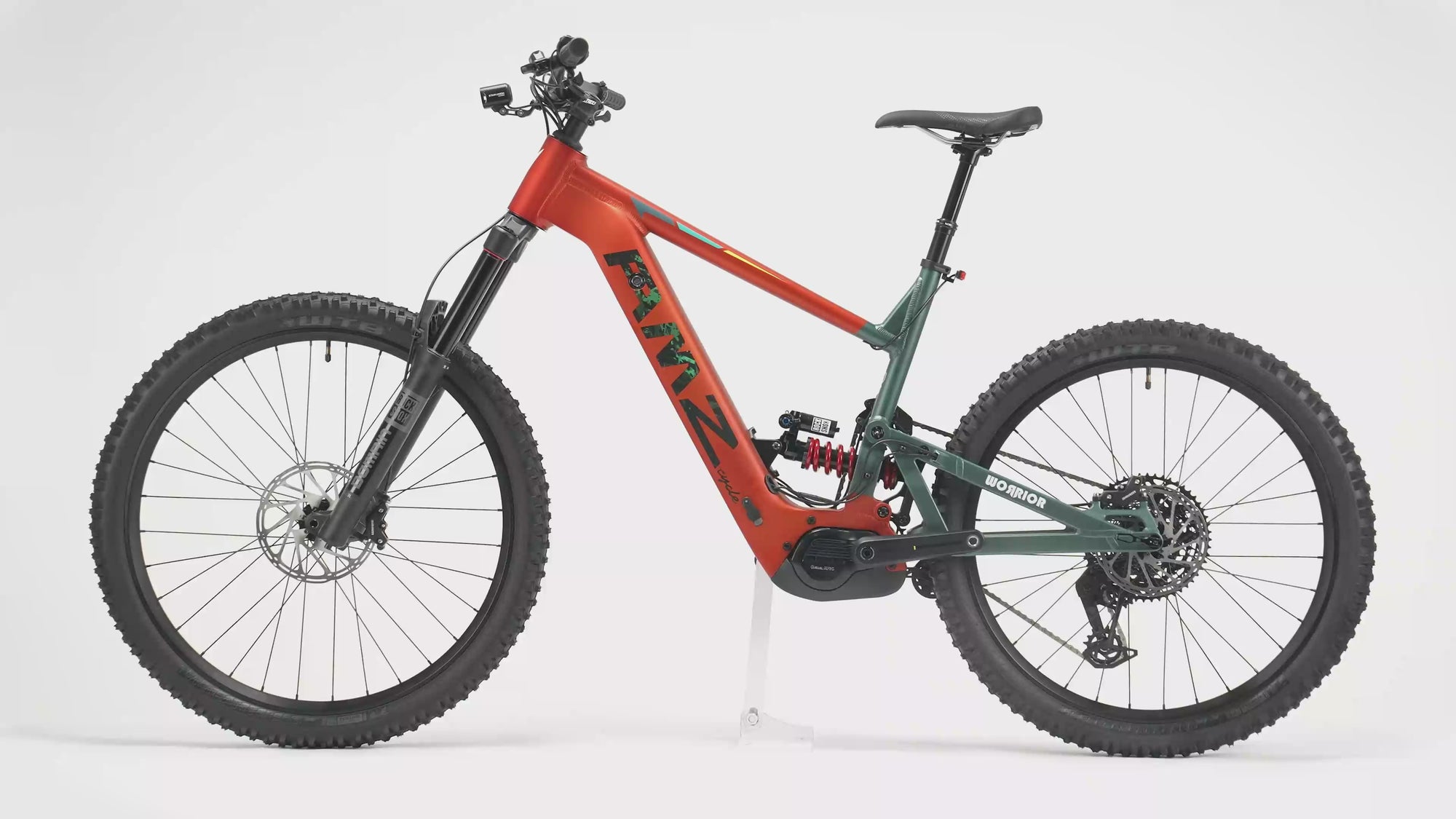

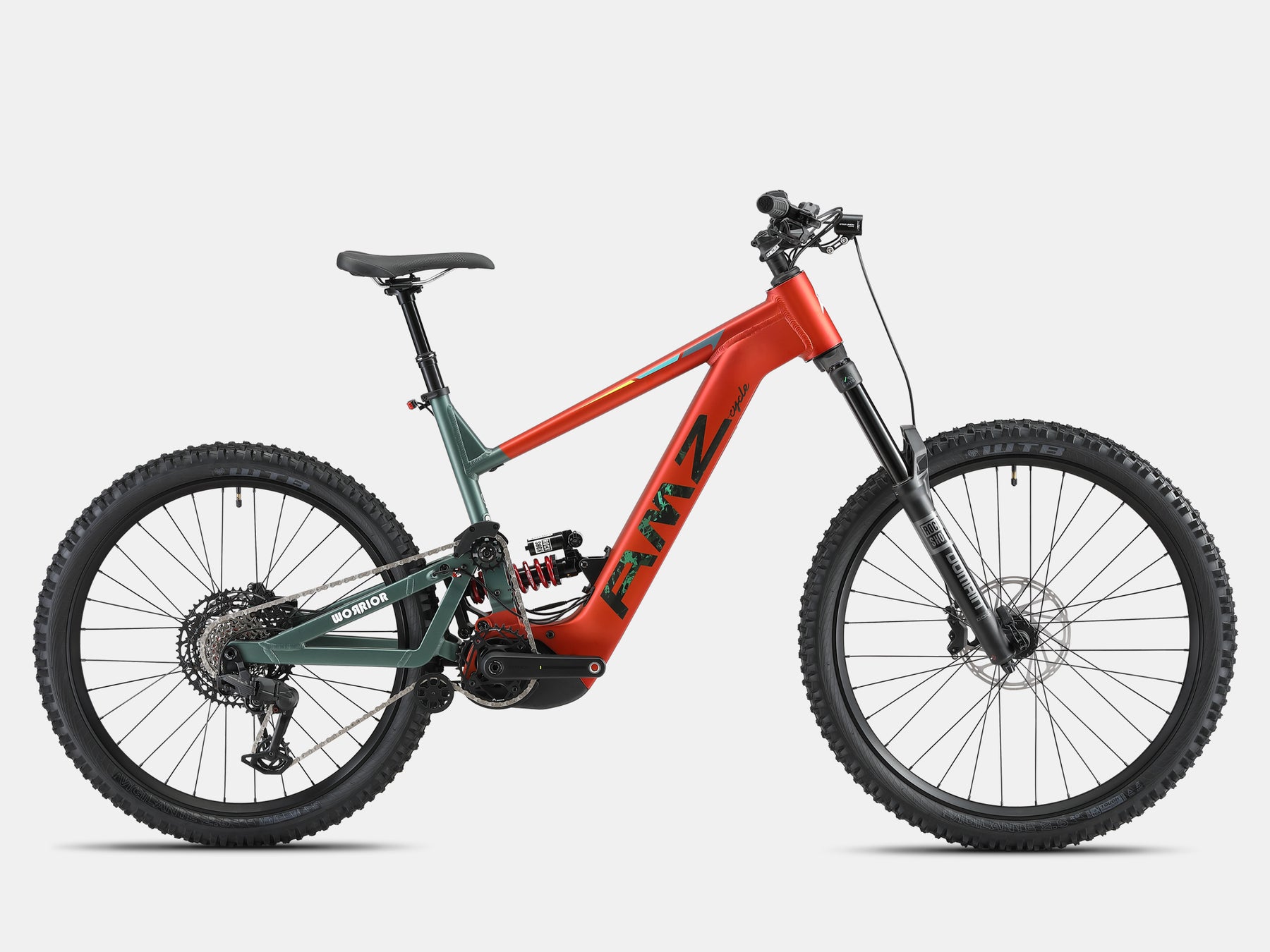

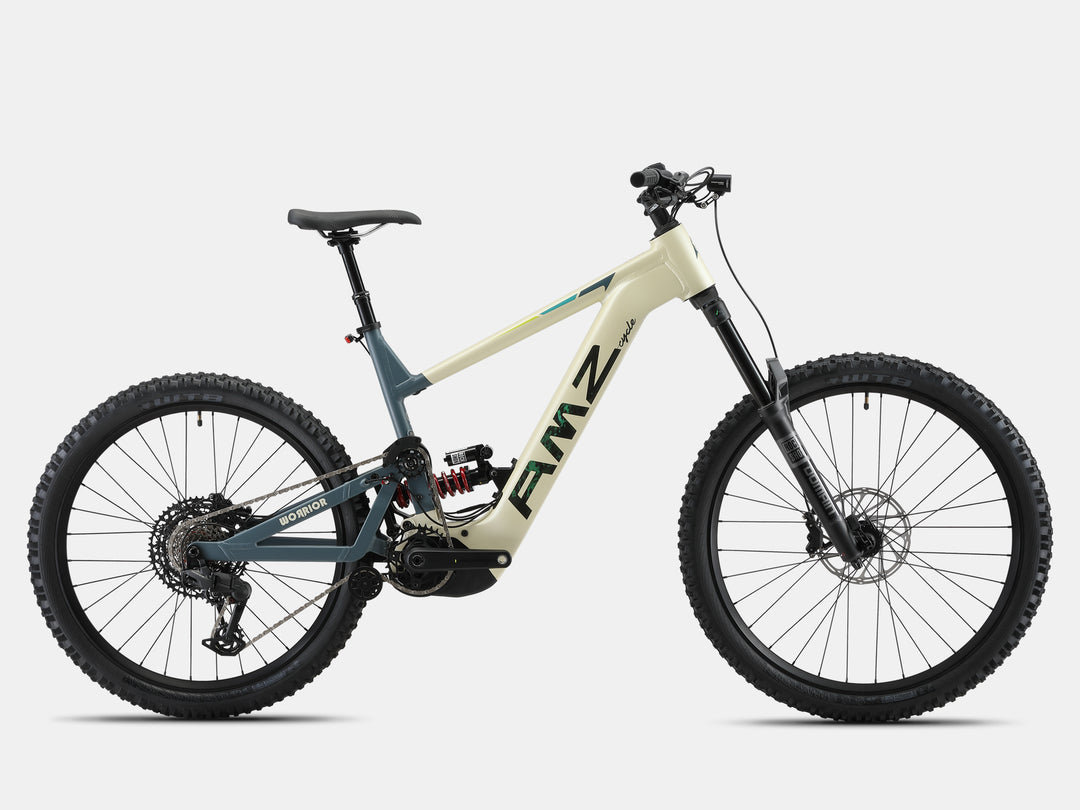

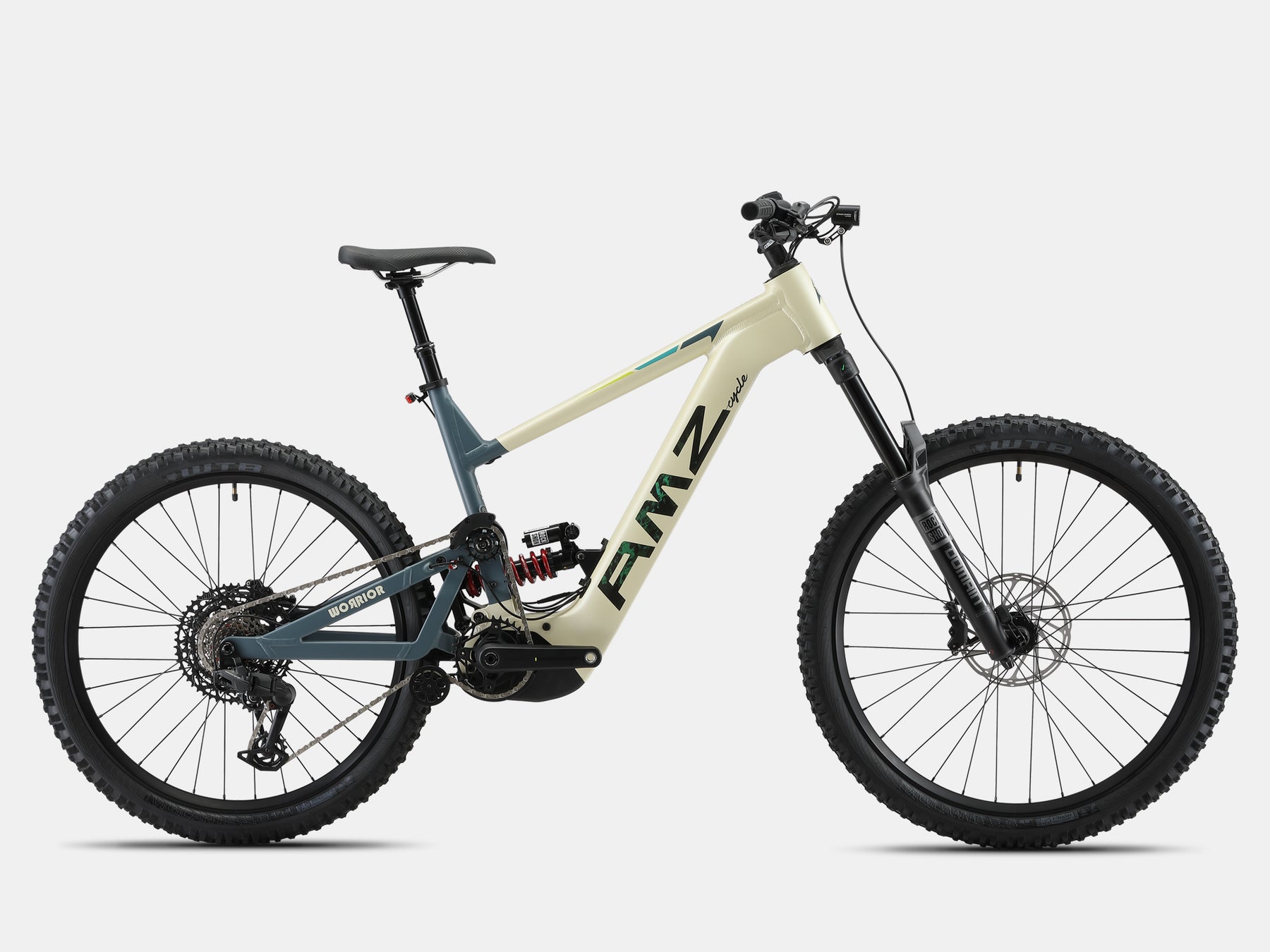

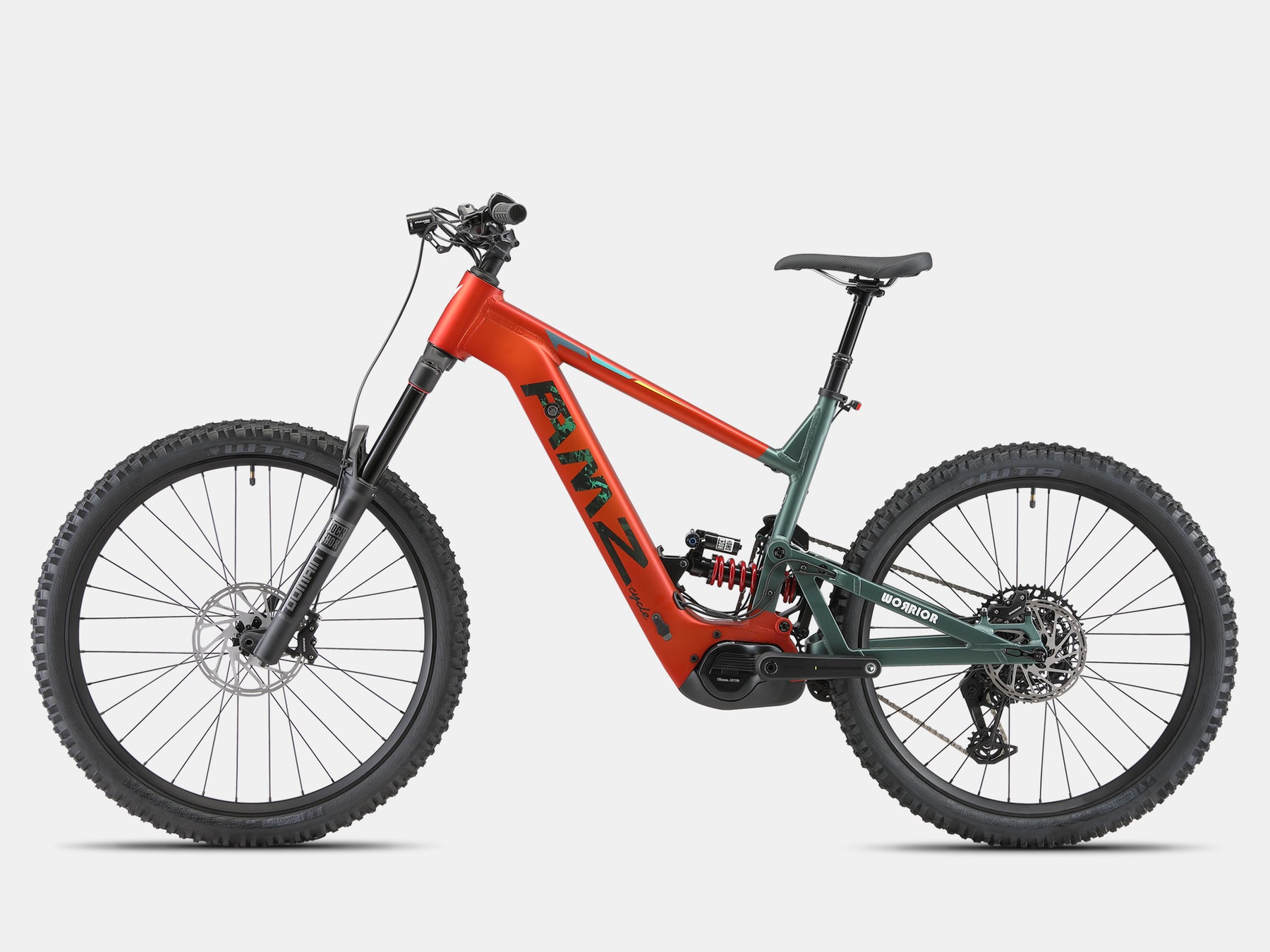

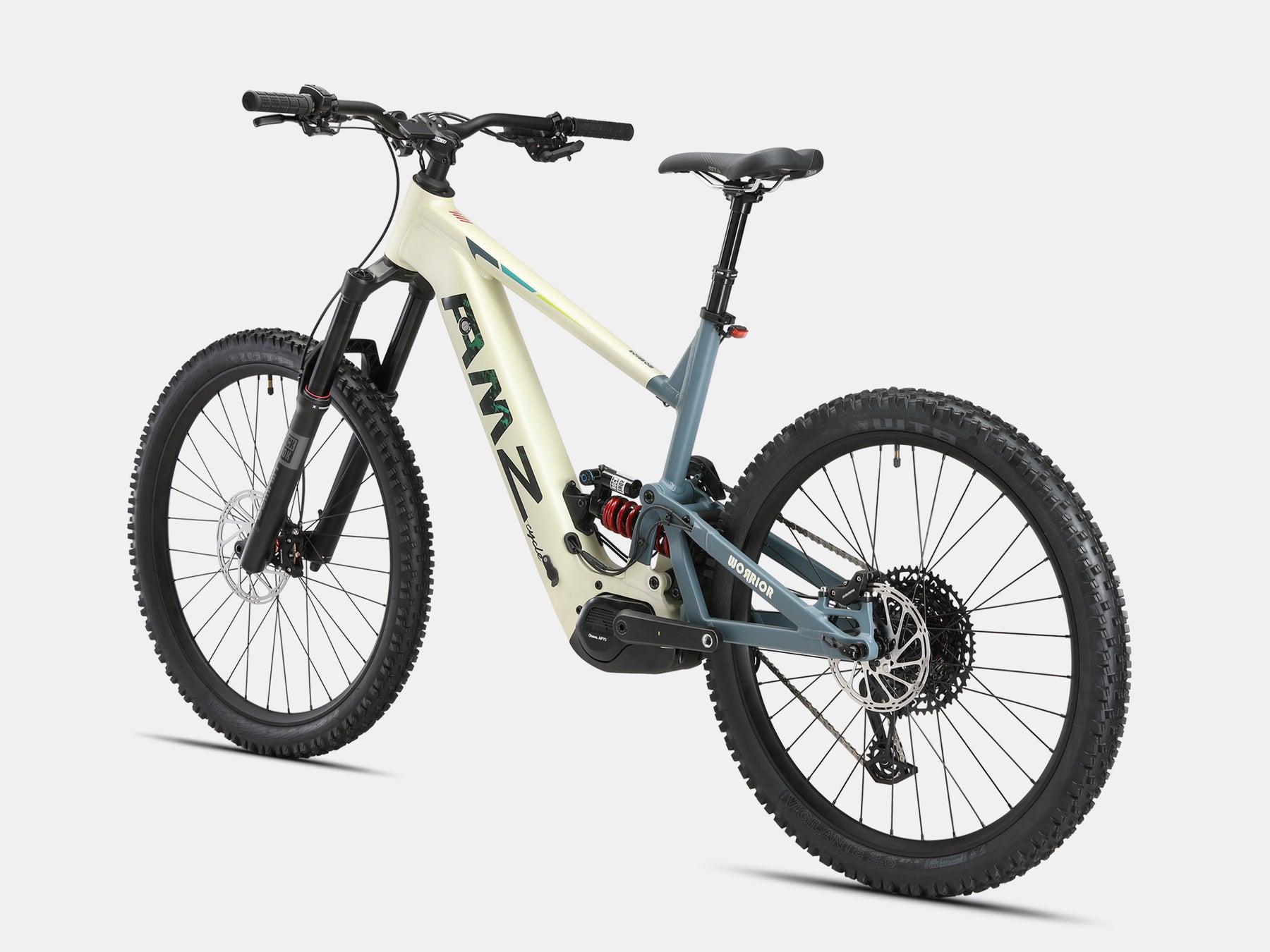

Worrior Enduro Electric Mountain Bike
Performance Within Reach.
Regular price$5,199.00
Top Speed
20MPH
MOTOR POWER
750W(Peak)
RANGE
Up to 75 Miles
Weight
50 lbs
Technical Specifications

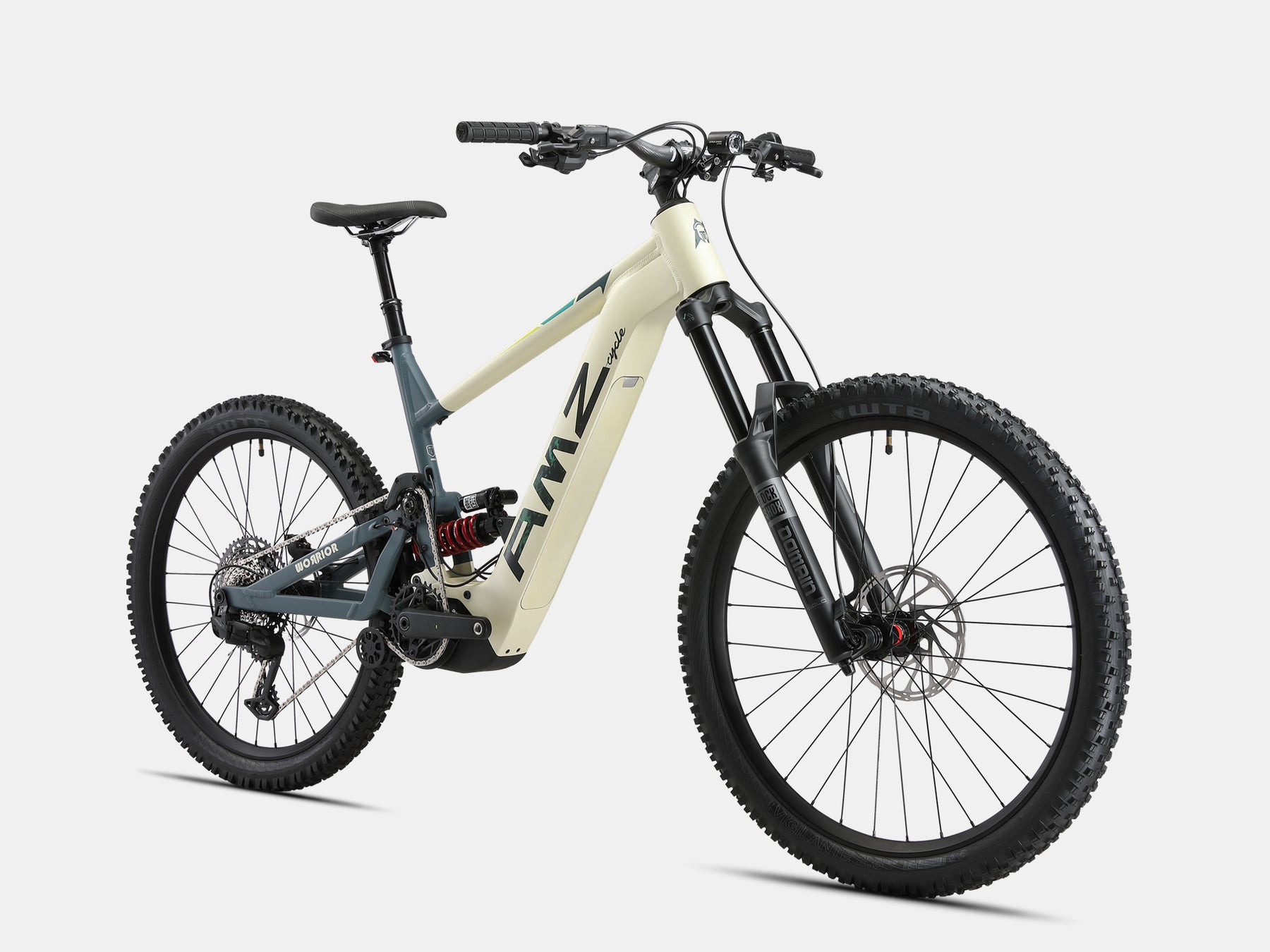

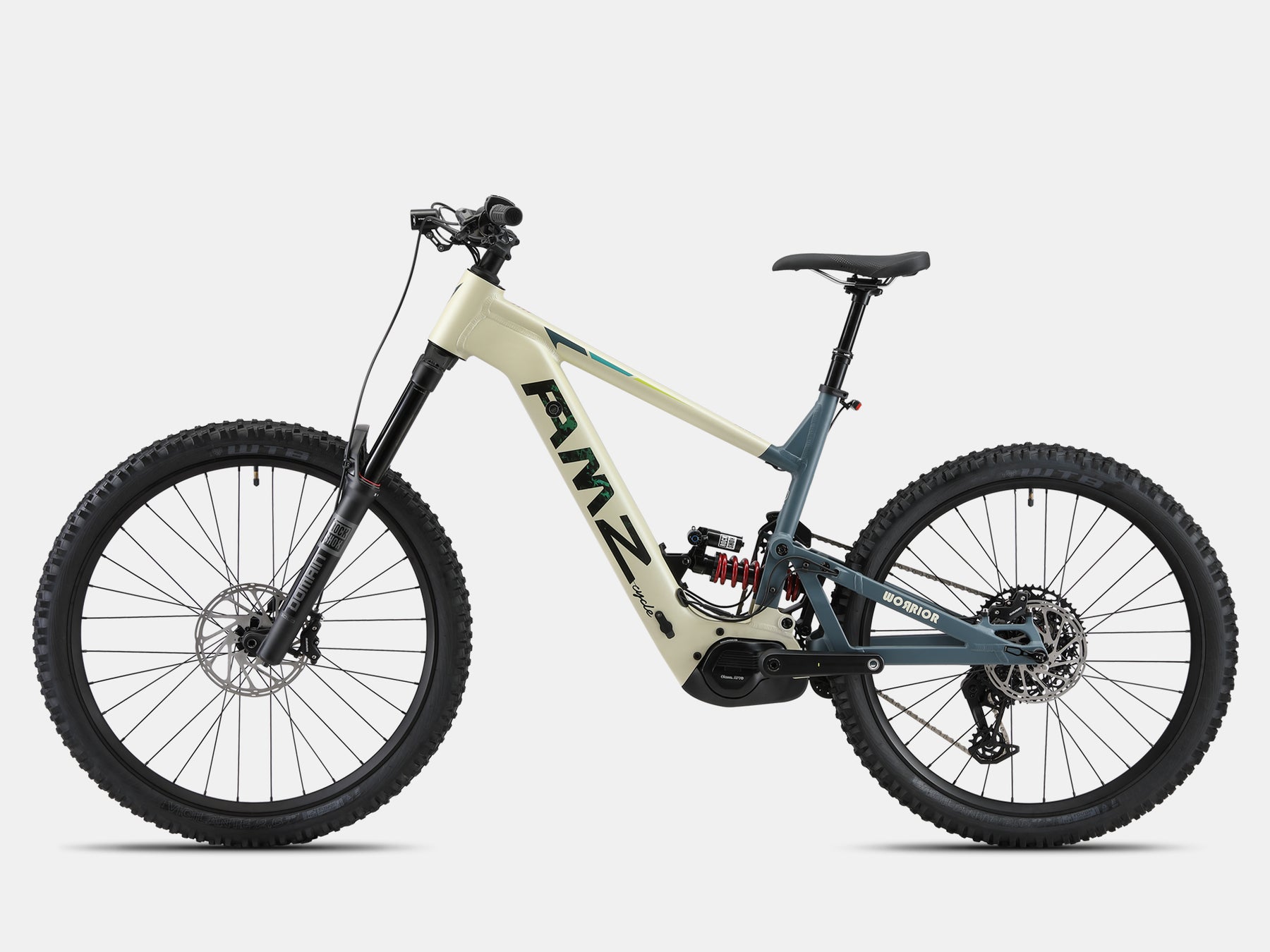

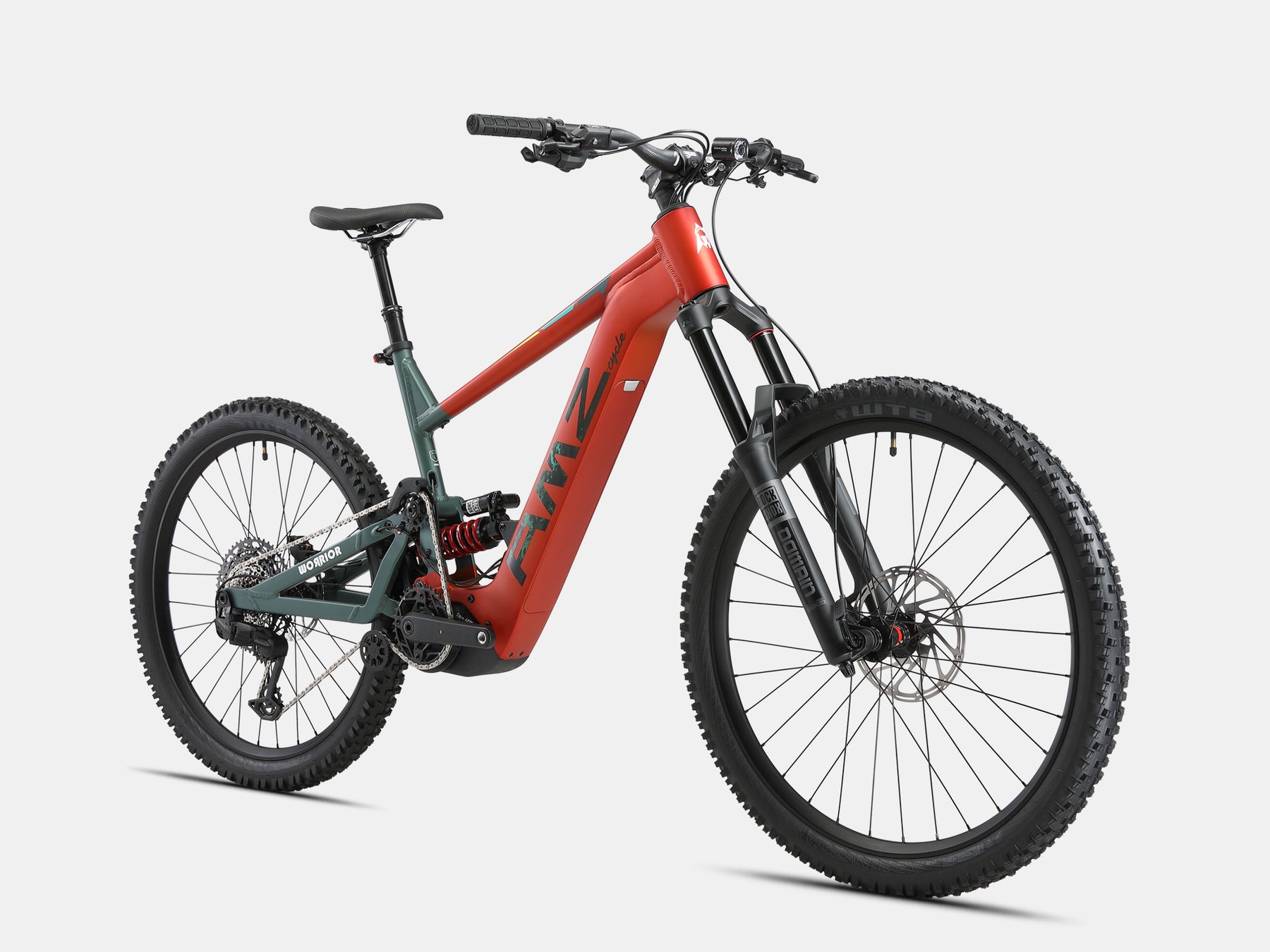

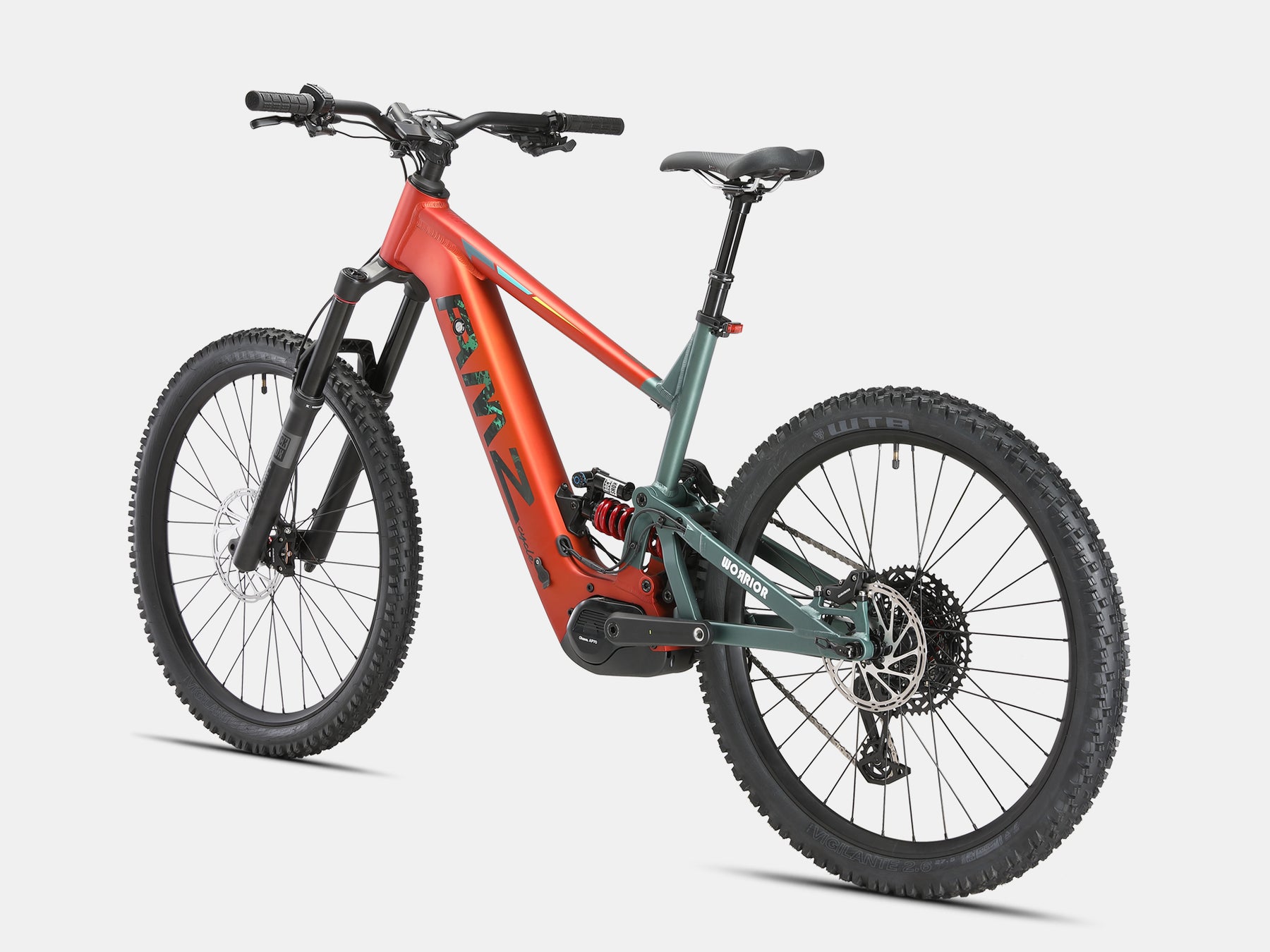

| TS2502 E70 – E-Enduro Full Specifications | |
|---|---|
| BASIC INFO | |
| Model | TS2502 E70 |
| Bike Type | E-Enduro (Performance Build) |
| Use Case | Urban Commuting / Leisure & Trail Riding |
| Frame Material | Aluminum Alloy |
| Wheel Size | Front 29×2.6" / Rear 27.5×2.6" (Mullet) |
| Speeds | 1×12S |
| Motor | Okawa AP70 500W |
| Certification | UL2849 |
| Sizes Available | 3 |
| Colors Available | 2 |
| Configuration | 3 |
| PERFORMANCE | |
| US Class | Class 2 |
| Rated Power | 500W |
| Battery Capacity | 720Wh (48V 15Ah) |
| Motor Torque | 120 N·m |
| Max Assist Speed | 20 mph / 32 km/h |
| Max Assist Range | 100–120 km |
| Rated Voltage | 48V |
| Charger Max Current | 3A |
| Charging Time | 6–8 hours |
| Total Weight | — |
| Max Load Capacity | — |
| Package Dimensions | — |
| FRAME SET | |

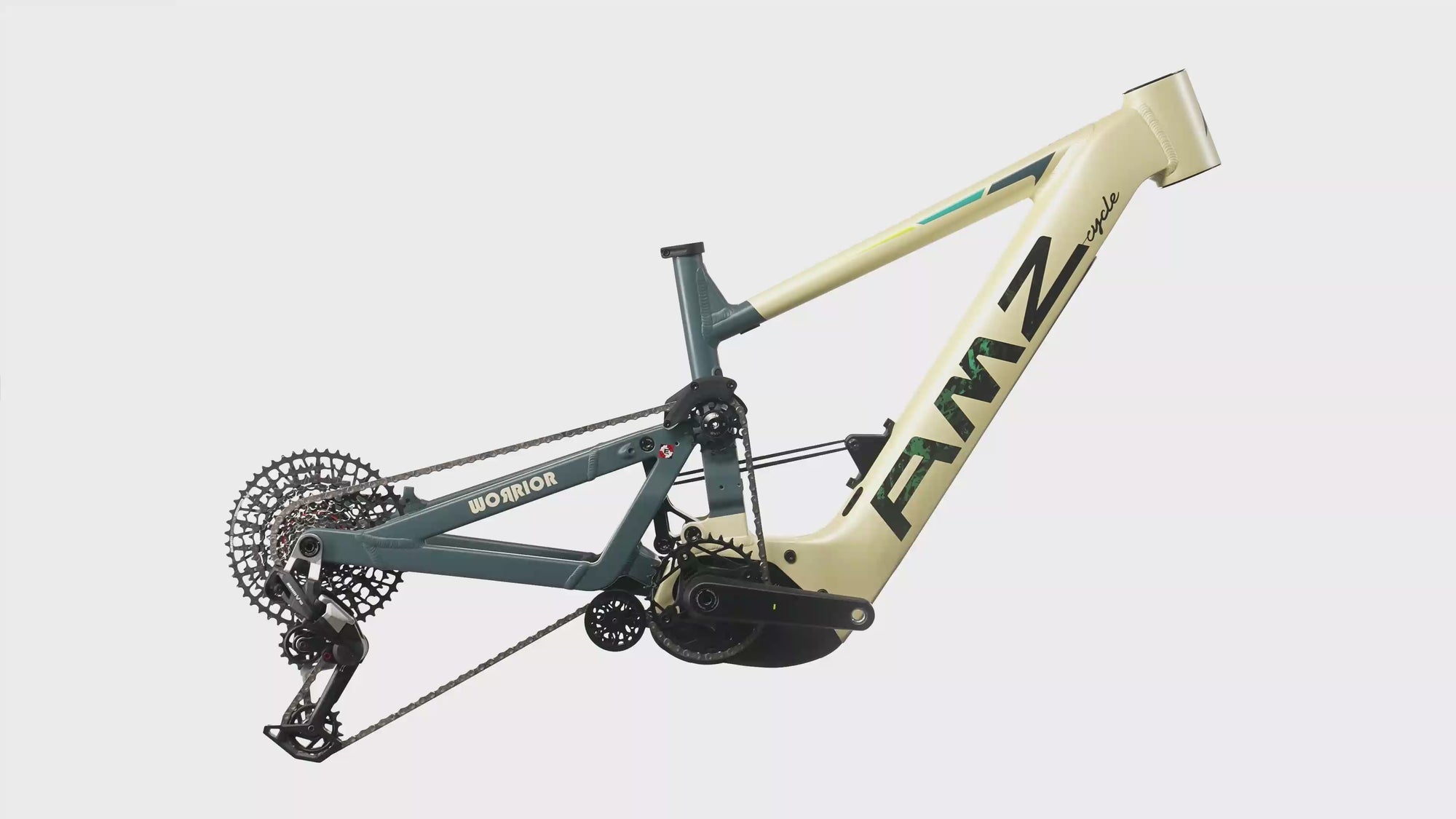

| Frame | AL6061 T6; 29"; High pivot; 14T pivot wheel; ISCG 05; SRAM UDH compatible; 148×12mm thru axle; 170mm travel; Post Mount; angle-adjust headset; internal routing; removable battery |
| Headset | FICR; Φ51.8×8mm top / Φ51.8×8mm bottom bearing; angle adjust cup compatible |
| SUSPENSION | |
| Fork | ROCKSHOX Domain; DebonAir spring; Isolator RC damper; tapered steerer; 44mm offset; 180mm travel; 15×110mm BOOST; Maxle Stealth |
| Rear Shock | ROCKSHOX Vivid Coil Ultimate; 230mm×65mm |
| ELECTRICAL SYSTEM | |
| Motor | OKAWA AP70; 120 N·m; 500W continuous rated power; 700W peak; ISIS |
| Battery | SAMSUNG 21700 Cell; 48V 15Ah 720Wh; UL2271; DC2.1; IPX5 (with charger) |
| Controller | OKAWA AP70; 48V |
| Display | 2.0" Intelligent LCD; IPS |
| Headlight | LED; STVZO, ECE, ISO compliant |
| Taillight | LED; STVZO, ECE, ISO compliant |
| BRAKES | |
| Front Brake | SRAM DB6; Hydraulic; Direct mount DIR; 4-piston |
| Rear Brake | SRAM DB6; Hydraulic; Direct mount DIR; 4-piston |
| Front Disc | SRAM 200mm (6-bolt); 2.0mm |
| Rear Disc | SRAM 180mm (6-bolt); 2.0mm |
| DRIVETRAIN | |
| Shifter | SRAM E70; 12-speed; T-Type; Trigger |
| Rear Derailleur | SRAM E70; 12-speed; T-Type actuation Cable |
| Chainring | SRAM; 34T; 104BCD; EMTB |
| Crankarm | SAMOX; 170mm; Carbon Fiber |
| Chain | SRAM E70; 12-speed; T-Type Chain Technology |
| Cassette | SRAM E70; 12-speed; T-Type; 10–52T |
| COCKPIT | |
| Handlebar | CONTROLTECH; AL6061; 35mm; 35mm rise; 800mm width |
| Stem | CONTROLTECH; 35mm; 0°; 50mm length |
| Saddle | WTB Volt; 150mm width; Cromoly rails |
| Pedals | FP-897ZP flat pedals; 116×105; ZP bearing |
| DROPPER POST | |
| Dropper Post | Size M: KS RAGEi; 30.9mm; 100mm travel; 342mm length Size L/XL: KS RAGEi; 30.9mm; 150mm travel; 442mm length |
| Dropper Remote | WESTY2.0 SRAM Matchmaker compatible |
| WHEELS & TIRES | |
| Front Rim | DR-P30; 29" Rim; AV |
| Rear Rim | DR-P30; 27.5" Rim; AV |
| Front Hub | D041SB; 6-bolt; Boost110; 15mm thru axle; 32H |
| Rear Hub | D442SB; 6-bolt; Boost148; 12mm thru axle; 32H |
| Spokes | 13G |
| Nipples | 13G; 14mm |
| Front Tube | 29×2.6"; AV48mm |
| Rear Tube | 27.5×2.6"; AV48mm |
| Front Tire | WTB Vigilante; 2.6×29" |
| Rear Tire | WTB Vigilante; 2.6×27.5" |

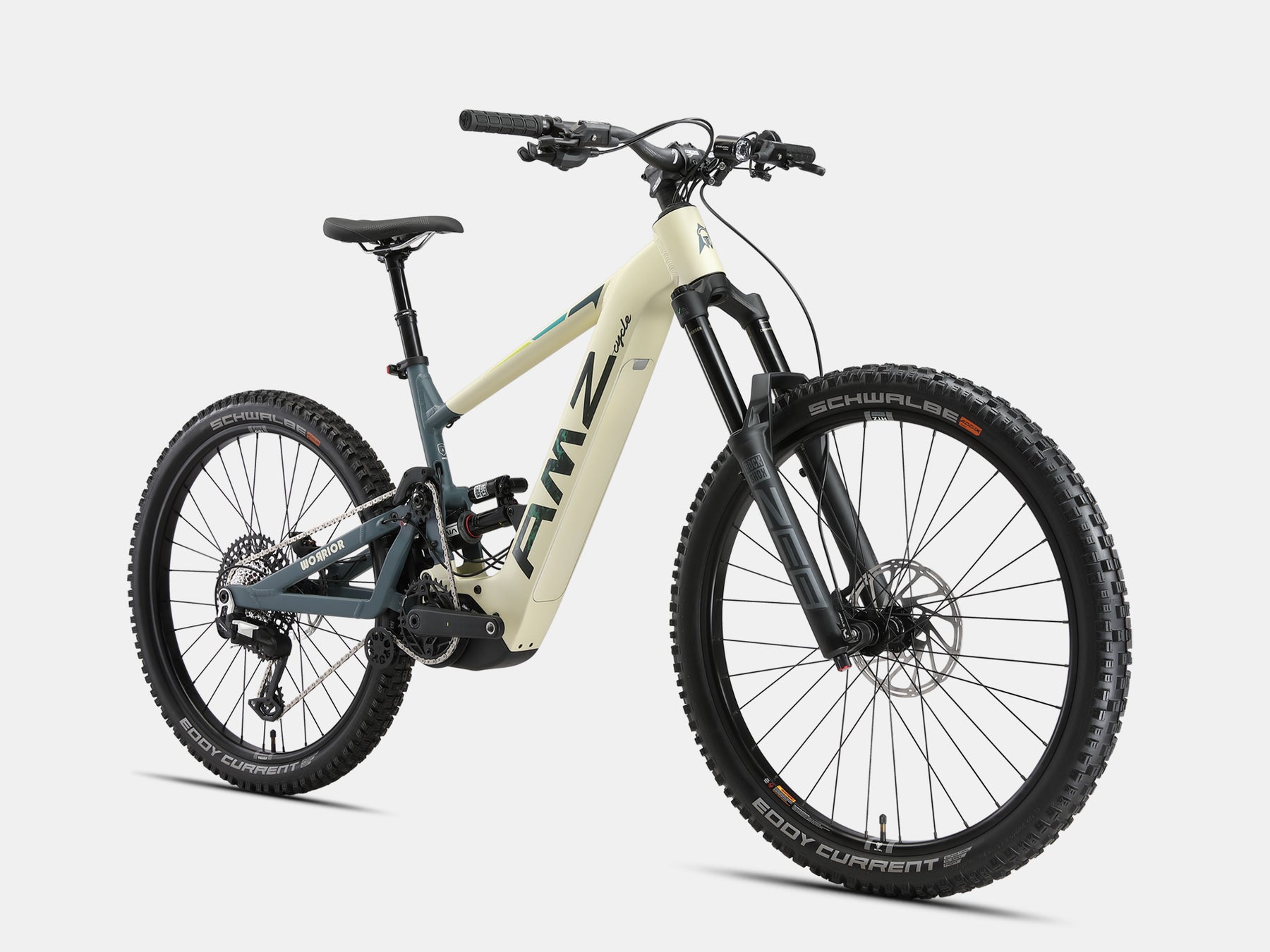

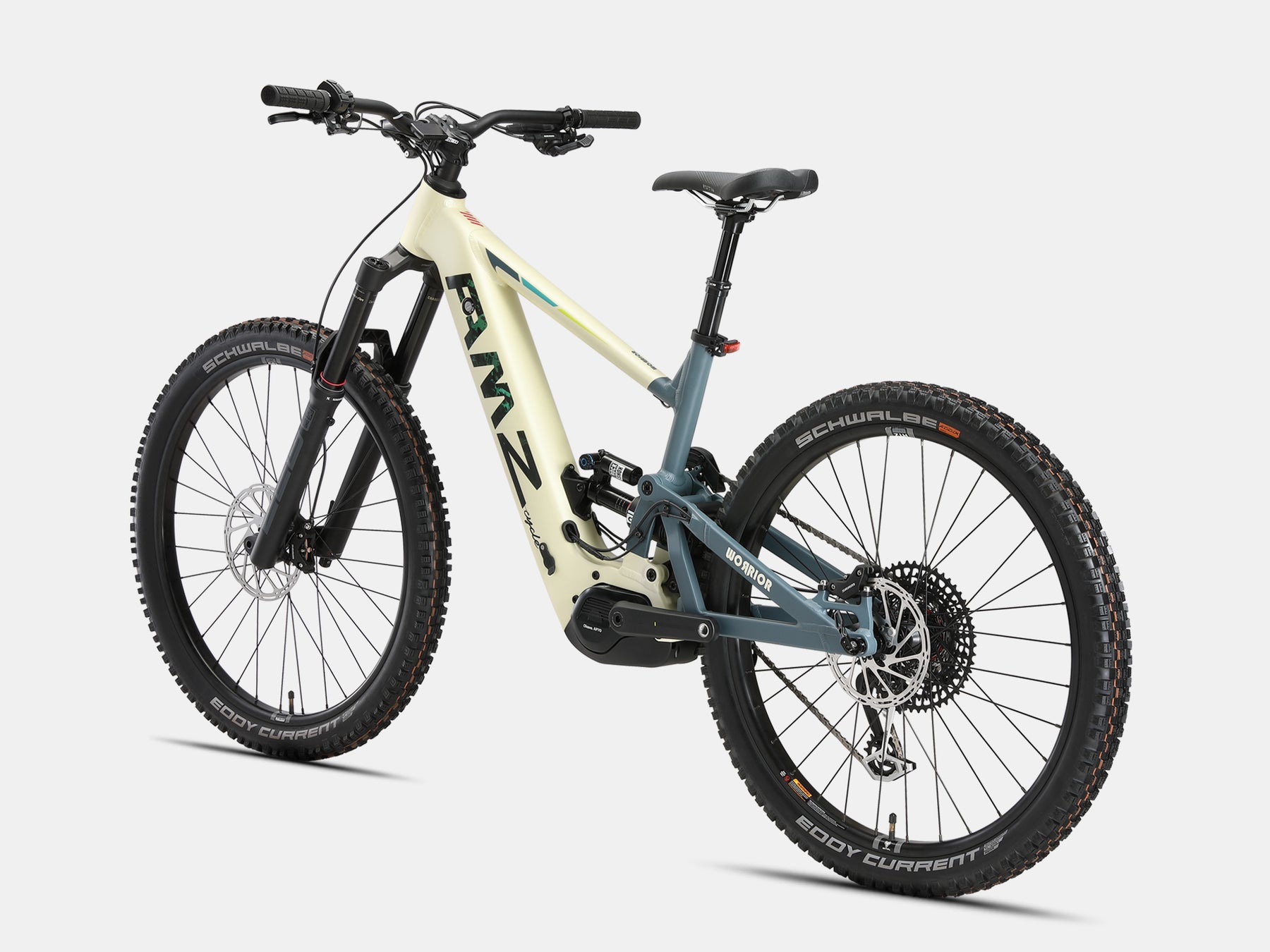

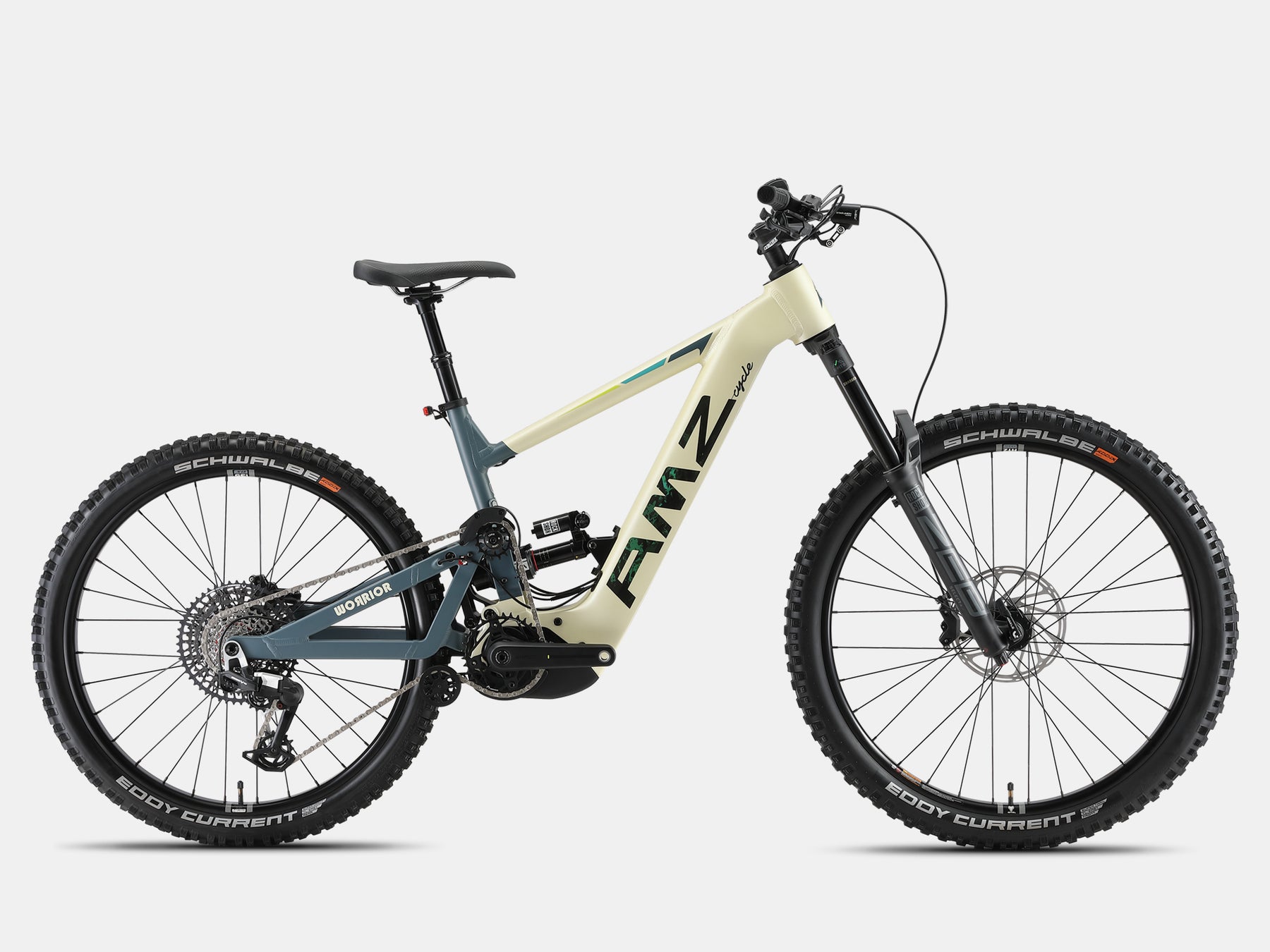

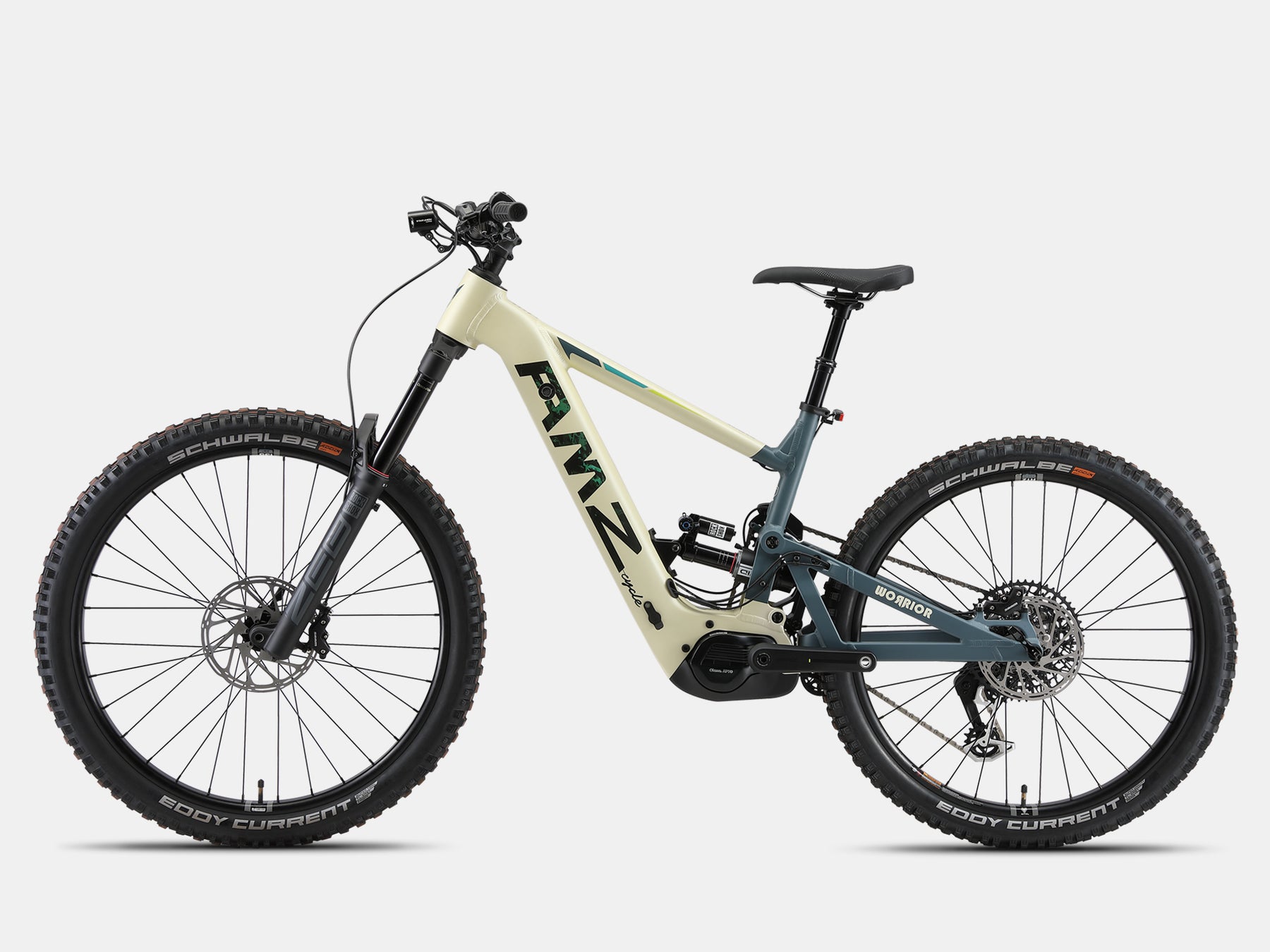

| TS2502 E90 – E-Enduro Full Specifications | |
|---|---|
| BASIC INFO | |
| Model | TS2502 E90 |
| Bike Type | E-Enduro (Premium Build) |
| Use Case | Urban Commuting / Leisure & Trail Riding |
| Frame Material | Aluminum Alloy |
| Wheel Size | Front 29×2.6" / Rear 27.5×2.6" (Mullet) |
| Speeds | 1×12S |
| Motor | Okawa AP70 500W |
| Certification | UL2849 |
| Sizes Available | 3 |
| Colors Available | 2 |
| Configuration | 3 |
| PERFORMANCE | |
| US Class | Class 2 |
| Rated Power | 500W |
| Battery Capacity | 720Wh (48V 15Ah) |
| Motor Torque | 120 N·m |
| Max Assist Speed | 20 mph / 32 km/h |
| Max Assist Range | 100–120 km |
| Rated Voltage | 48V |
| Charger Max Current | 3A |
| Charging Time | 6–8 hours |
| Total Weight | — |
| Max Load Capacity | — |
| Package Dimensions | — |
| FRAME SET | |
| Frame | AL6061 T6; 29"; High pivot; 14T pivot wheel; ISCG 05; SRAM UDH compatible; 148×12mm thru axle; 170mm travel; Post Mount; angle-adjust headset; internal routing; removable battery |
| Headset | FICR; Φ51.8×8mm top / Φ51.8×8mm bottom bearing; angle adjust cup compatible |
| SUSPENSION | |
| Fork | ROCKSHOX ZEB Select+; DebonAir+ spring; Charger 3.1 RC2 damper; tapered steerer; 44mm offset; 180mm travel; 15×110mm BOOST; Maxle Stealth |
| Rear Shock | ROCKSHOX Vivid Ultimate; 230mm×65mm |
| ELECTRICAL SYSTEM | |
| Motor | OKAWA AP70; 120 N·m; 500W continuous rated power; 700W peak; ISIS |
| Battery | SAMSUNG 21700 Cell; 48V 15Ah 720Wh; UL2271; DC2.1; IPX5 (with charger) |
| Controller | OKAWA AP70; 48V |
| Display | 2.0" Intelligent LCD; IPS |
| Headlight | LED; STVZO, ECE, ISO compliant |
| Taillight | LED; STVZO, ECE, ISO compliant |
| BRAKES | |
| Front Brake | SRAM DB6; Hydraulic; Direct mount DIR; 4-piston |
| Rear Brake | SRAM DB6; Hydraulic; Direct mount DIR; 4-piston |
| Front Disc | SRAM 200mm (6-bolt); 2.0mm |
| Rear Disc | SRAM 180mm (6-bolt); 2.0mm |
| DRIVETRAIN | |
| Shifter | SRAM E90; 12-speed; T-Type Actuation; Trigger |
| Rear Derailleur | SRAM E90; 12-speed; T-Type Actuation Cable |
| Chainring | SRAM; 34T; 104BCD; EMTB |
| Crankarm | SAMOX; 170mm; Carbon Fiber |
| Chain | SRAM E70; 12-speed; T-Type Chain Technology |
| Cassette | SRAM E70; 12-speed; T-Type; 10–52T |
| COCKPIT | |
| Handlebar | CONTROLTECH; AL6061; 35mm; 35mm rise; 800mm width |
| Stem | CONTROLTECH; 35mm; 0°; 50mm length |
| Saddle | WTB Volt; 150mm width; Cromoly rails |
| Pedals | FP-897ZP flat pedals; 116×105; ZP bearing |
| DROPPER POST | |
| Dropper Post | Size M: KS RAGEi; 30.9mm; 100mm travel; 342mm length Size L/XL: KS RAGEi; 30.9mm; 150mm travel; 442mm length |
| Dropper Remote | WESTY2.0 SRAM Matchmaker compatible |
| WHEELS & TIRES | |
| Front Rim | WTB Htz Trail i35; 29" Rim; AV |
| Rear Rim | WTB Htz Trail i35; 27.5" Rim; AV |
| Front Hub | WTB; 6-bolt; Boost110; 15mm thru axle; 32H |
| Rear Hub | WTB; 6-bolt; Boost148; 12mm thru axle; 32H |
| Spokes | 13G |
| Nipples | SAPIM 13G; 14mm |
| Front Tube | 29×2.6"; AV48mm |
| Rear Tube | 27.5×2.6"; AV48mm |
| Front Tire | SCHWALBE Eddy Current; Folding bead; 2.6×29" |
| Rear Tire | SCHWALBE Eddy Current; Folding bead; 2.6×27.5" |

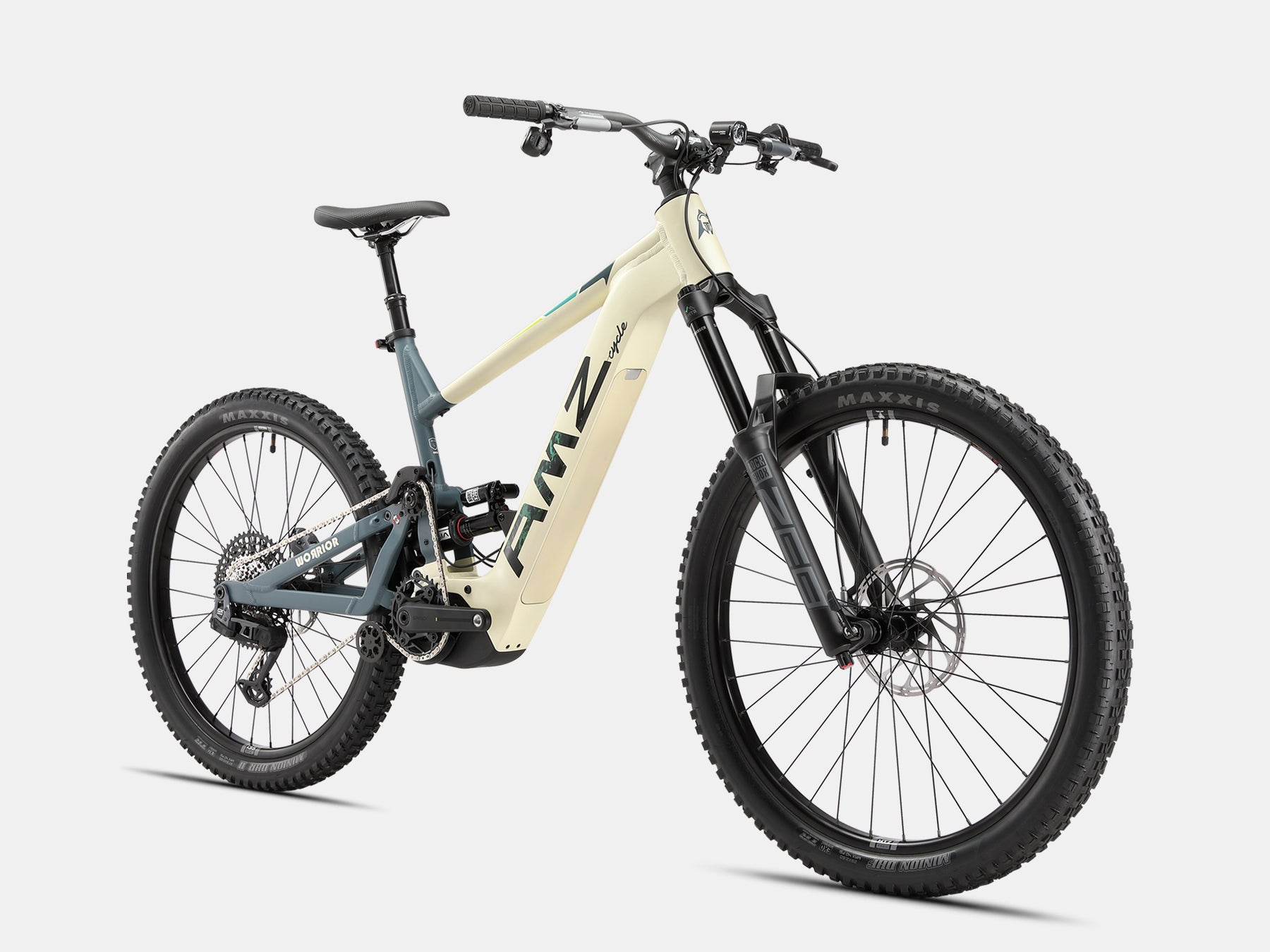

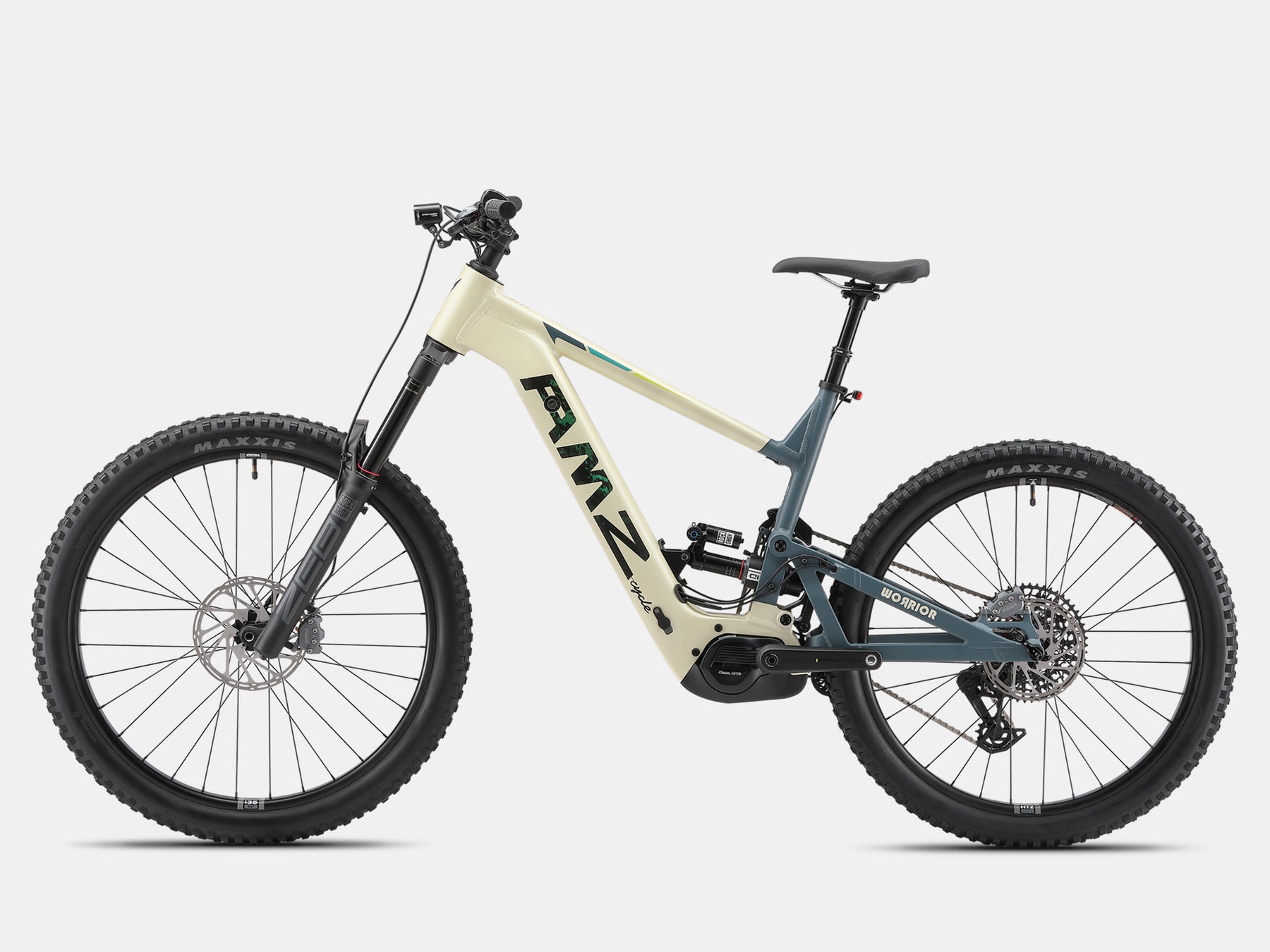

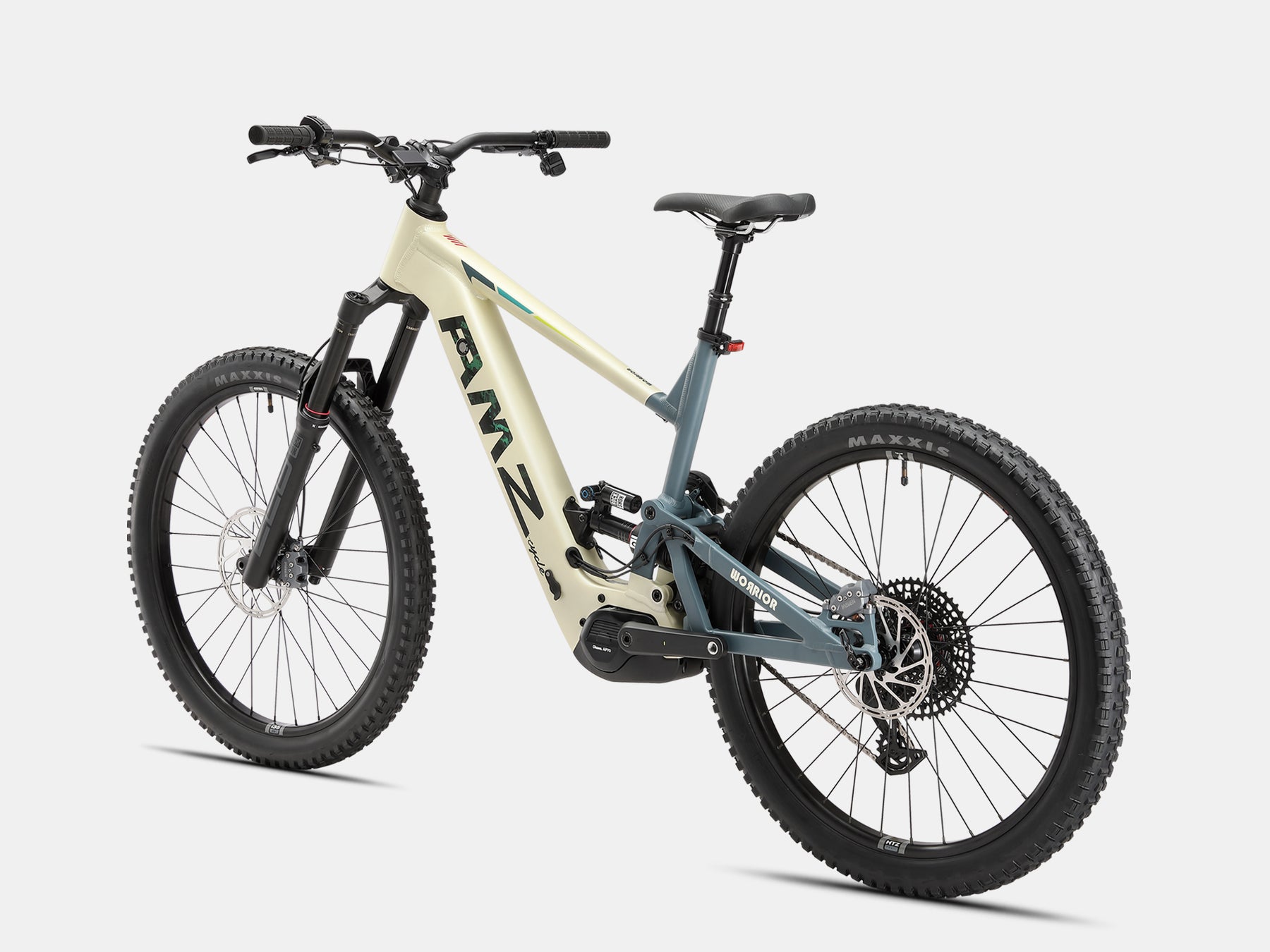

| TS2502 AXS – E-Enduro Full Specifications | |
|---|---|
| BASIC INFO | |
| Model | TS2502 AXS |
| Bike Type | E-Enduro (Ultimate Build) |
| Use Case | Urban Commuting / Leisure & Trail Riding |
| Frame Material | Aluminum Alloy |
| Wheel Size | Front 29×2.6" / Rear 27.5×2.6" (Mullet) |
| Speeds | 1×12S |
| Motor | Okawa AP70 500W |
| Certification | UL2849 |
| Sizes Available | 3 |
| Colors Available | 2 |
| Configuration | 3 |
| PERFORMANCE | |
| US Class | Class 2 |
| Rated Power | 500W |
| Battery Capacity | 720Wh (48V 15Ah) |
| Motor Torque | 120 N·m |
| Max Assist Speed | 20 mph / 32 km/h |
| Max Assist Range | 100–120 km |
| Rated Voltage | 48V |
| Charger Max Current | 3A |
| Charging Time | 6–8 hours |
| Total Weight | — |
| Max Load Capacity | — |
| Package Dimensions | — |
| FRAME SET | |
| Frame | AL6061 T6; 29"; High pivot; 14T pivot wheel; ISCG 05; SRAM UDH compatible; 148×12mm thru axle; 170mm travel; Post Mount; Reach-adjust headset; internal routing; removable battery; enduro bearing |
| Headset | FICR; Φ51.8×8mm top / Φ51.8×8mm bottom bearing; angle adjust cup compatible |
| SUSPENSION | |
| Fork | ROCKSHOX ZEB Select+; DebonAir+ spring; Charger 3.1 RC2 damper; tapered steerer; 44mm offset; 180mm travel; 15×110mm BOOST; Maxle Stealth |
| Rear Shock | ROCKSHOX Vivid Ultimate; 230mm×65mm |
| ELECTRICAL SYSTEM | |
| Motor | OKAWA AP70; 120 N·m; 500W continuous rated power; 700W peak; ISIS |
| Battery | SAMSUNG 21700 Cell; 48V 15Ah 720Wh; UL2271; DC2.1; IPX5 (with charger) |
| Controller | OKAWA AP70; 48V |
| Display | 2.0" Intelligent LCD; IPS |
| Headlight | LED; STVZO, ECE, ISO compliant |
| Taillight | LED; STVZO, ECE, ISO compliant |
| BRAKES | |
| Front Brake | SRAM MAVEN; Hydraulic; Direct mount DIR; Stiff 4-piston caliper |
| Rear Brake | SRAM MAVEN; Hydraulic; Direct mount DIR; Stiff 4-piston caliper |
| Front Disc | SRAM 200mm (6-bolt); 2.0mm |
| Rear Disc | SRAM 180mm (6-bolt); 2.0mm |
| DRIVETRAIN | |
| Shifter | SRAM AXS; 12-speed; Wireless Shift Technology |
| Rear Derailleur | SRAM AXS; 12-speed; Wireless Shift Technology |
| Chainring | SRAM; 34T; 104BCD; EMTB |
| Crankarm | SAMOX; 170mm; Carbon Fiber |
| Chain | SRAM AXS; 12-speed; Power Lock Chain Connector |
| Cassette | SRAM E70; 12-speed; T-Type; 10–52T |
| COCKPIT | |
| Handlebar | CONTROLTECH; AL6061; 35mm; 35mm rise; 800mm width |
| Stem | CONTROLTECH; 35mm; 0°; 50mm length |
| Saddle | WTB Volt; 150mm width; Cromoly rails |
| Pedals | FP-897ZP flat pedals; 116×105; ZP bearing |
| DROPPER POST | |
| Dropper Post | Size M: KS RAGEi; 30.9mm; 100mm travel; 342mm length Size L/XL: KS RAGEi; 30.9mm; 150mm travel; 442mm length |
| Dropper Remote | WESTY2.0 SRAM Matchmaker compatible |
| WHEELS & TIRES | |
| Front Rim | WTB Htz Trail i35; 29" Rim; AV |
| Rear Rim | WTB Htz Trail i35; 27.5" Rim; AV |
| Front Hub | WTB; 6-bolt; Boost110; 15mm thru axle; 32H |
| Rear Hub | WTB; 6-bolt; Boost148; 12mm thru axle; 32H |
| Spokes | 13G |
| Nipples | SAPIM 13G; 14mm |
| Front Tube | 29×2.6"; AV48mm |
| Rear Tube | 27.5×2.6"; AV48mm |
| Front Tire | MAXXIS MINION DHF; Folding bead; 60TPI; 2.6×29" |
| Rear Tire | MAXXIS MINION DHR; Folding bead; 60TPI; 2.6×27.5" |
Frame: 5 years
Front Fork: 2 years
Motor: 12 months
Battery: 18 months or 20,000 miles (whichever comes first)
Display: 12 months
For more components and details, please refer to our warranty card.
